A sliding door can look like a straightforward replacement until the new frame arrives a few millimetres too wide, the sill detail does not suit the opening, or the moving panel cannot clear the planned furniture. Knowing how to measure sliding doors properly before ordering avoids costly site delays and gives you a clearer basis for comparing standard stock sizes with a custom-made unit.
For Melbourne renovations, measure the structural opening and confirm the installation detail before choosing a door size. Do not rely on the size printed on an old door frame, a real estate floor plan or a rough tape measure taken from one point only.
Start by identifying what you are measuring
The first question is whether you are measuring for a new opening, a replacement door or an existing door that is being retained in the same frame. Each job needs a slightly different approach.
For a new build or extension, measure the prepared structural opening after the framing is complete. For masonry, this means the finished brick or block opening. For a timber or steel-framed wall, it means the framed opening specified for the door. Check with your builder which finishes are still to be added, particularly render, cladding, tiles or flooring.
For a replacement, remove architraves or internal trims only if needed to see the actual frame and reveal. The visible glass size is not the door size. Nor is the daylight opening when the door is open. You need the overall outside dimensions of the existing frame, plus the available opening in the wall if the old frame is coming out.
A door can be made to fit a non-standard opening, but the correct order size depends on the system, fixing method and flashing detail. Always allow for installation tolerances rather than ordering a frame to the exact opening size.
Tools that give you reliable measurements
A quality tape measure is usually enough for a domestic sliding door, but it pays to have a few basic tools ready:
- Tape measure with a clear metric scale
- Spirit level or laser level
- Pencil and notepad, or a mobile photo marked with dimensions
- Straight edge for checking bowed walls or uneven sills
- Camera for recording the opening, threshold and external finishes

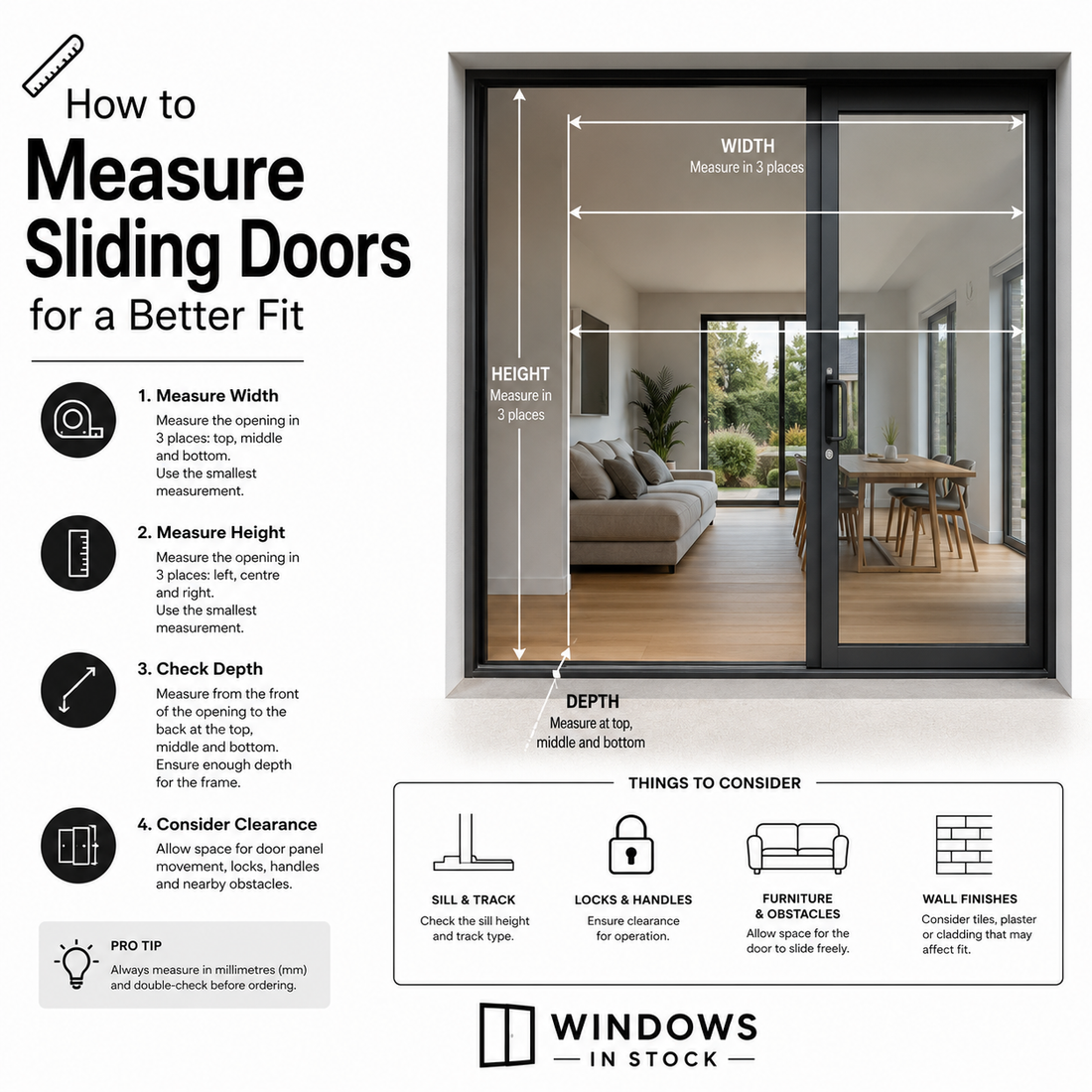

How to measure sliding doors at the opening
Measure the width in three places: across the top, through the middle and at the sill. Record the smallest measurement. Old homes and renovated openings are often out of square, and the narrowest point determines whether the frame will fit.
Then measure the height on the left, centre and right. Take these measurements from the finished or intended sill level to the underside of the head. Again, use the smallest figure. If the floor finish has not been installed, establish its final height first. A sliding door that works perfectly before flooring is laid can bind at the bottom once tiles, timber or carpet are fitted.
Check whether the jambs are plumb and the head is level. A small variation can often be packed and sealed during installation, but a noticeably racked opening needs attention before the new door is ordered. Aluminium frames are manufactured square. Forcing one into a twisted opening can affect panel operation, weather performance and lock alignment.
Allow for fitting clearance
The rough opening is not normally the same as the ordered frame size. Installers require clearance around the frame to position it squarely, fix it securely and seal the perimeter correctly. The precise allowance varies by door system, wall construction and installation method.
For this reason, do not make a blanket deduction from your measurements without confirming the supplier's requirements. A stock sliding door may have a published overall frame size, while a made-to-order door may be sized specifically for the opening supplied. The quote should state clearly whether the dimensions are frame dimensions, opening dimensions or a recommended opening size.
Record the door configuration, not only the size
Two doors with the same overall width can work very differently. Before requesting a price, note how many panels are required and which panel needs to slide.
A common two-panel sliding door has one fixed panel and one moving panel. Larger openings may use three panels, with a centre slider or one moving panel travelling behind a fixed panel. Stacker doors use multiple sliding panels to create a wider clear opening, but require room for the panels to stack behind one another.
Stand on the inside and nominate the operating direction: for example, viewed from inside, right-hand panel sliding left. This avoids ambiguity. Also confirm where the handle, lock and any keyed cylinder are needed. These details matter for security, furniture placement and access from a deck, courtyard or balcony.
Measure the usable opening
The overall frame width is not the same as the clear passage width. With a standard sliding door, one panel remains fixed, so the opening available for moving furniture, a pram or access to an outdoor area is usually less than half of the total frame width once stiles are allowed for.
If access is a priority, ask for the clear opening dimension of the proposed configuration. A wider two-panel door, a three-panel arrangement or a stacker may be a better choice. The trade-off is cost, sightlines, wall space and, in some cases, the weight of larger glazed panels.
Check sill, drainage and floor levels
The bottom of a sliding door does more than carry the panels. It manages water and creates the transition between indoor and outdoor surfaces. Take photos and measurements of the internal floor level, external paving or decking, and the existing sill.
External surfaces should not be built up so high that they obstruct drainage paths or bridge the sill. This is particularly relevant when replacing a door after new paving, decking or a balcony membrane has been added. A low threshold may suit accessibility needs, but it requires the right system and careful site detailing to manage weather exposure.
Also consider the direction of prevailing rain and whether the opening is protected by an eave, verandah or awning. A highly exposed elevation may need greater attention to flashing, drainage and the selected door's water performance rating.
Check the wall, glazing and compliance requirements
Door dimensions influence more than appearance. A larger span may require heavier glass, stronger frames or a different panel layout. If your project needs double glazing for thermal comfort and noise reduction, confirm the glass build-up early because it affects panel weight and system suitability.
For homes near busy roads, rail corridors or active outdoor areas, acoustic performance can be as relevant as thermal performance. Double glazing can help, but frame seals, installation quality, glass specification and gaps around the perimeter all contribute to the result.
If the property is in a bushfire-prone area, confirm the applicable BAL requirement before ordering. The correct glazing, screens and hardware depend on the assessed level and door location. New homes and major renovations may also have energy-efficiency and building compliance requirements that affect glass selection.
Replacement measurements: avoid the common traps
The most frequent mistake is measuring only the opening between existing sliding panels. That gives you the clear opening, not the frame size. Another is measuring the internal trim line, which may conceal a larger or smaller structural opening behind it.
Do not assume that a door described as 2100 mm high will fit an opening measured at 2100 mm. Published sizes can refer to nominal sizes, overall frame sizes or the opening they are designed to suit. Ask the question before placing an order.
It is also worth checking whether the old frame is built into brickwork, fixed behind cladding, or tied into plaster and waterproofing. A like-for-like replacement is often quicker, but hidden fixings and finishes can change the removal and installation scope considerably.
What to send with a quote request
A useful quote request includes the smallest opening width and height, photos from inside and outside, wall type, desired configuration and whether the project is a replacement or new build. Add the internal floor finish, external surface level, required glazing and any BAL or acoustic requirements where known.
This information allows a supplier to recommend a practical stock size where it suits, or price a custom aluminium sliding door without guesswork. WINDOWS DOORS INSTOCK & REPLACEMENT can help confirm the right frame dimensions and configuration before a Melbourne project moves to order.
If there is any doubt about an uneven opening, complex sill, exposed location or compliance requirement, have the site checked before manufacturing begins. A careful measure now keeps the door choice, installation date and the rest of the build moving in the right direction.
